Officina Stellare Accessories for telescopes
Officina Stellare develops and manufactures high end accessories for the whole telescope’s line. They are all made in Italy, respecting our high quality standards.
Digital Motor for FF72
Precision motor with belt driven transmission, to motorize the FineFocuser 72.
Is provided with hand pad controller and ASCOM driver for remote usage. Connection to PC is done trough USB port.
| SPECIFICATIONS | |
|---|---|
| COMPATIBILITY | FF72 FOCUSER |
| MOTOR TRANSMISSION | BELT DRIVEN |
| CONNECTION TO PC | USB / VIA HAN DPAD |
| ASCOM DRIVER | YES |
| POWER | 12V |
Fine Focuser 72
Officina Stellare FF72 Fine Focuser, for RH200 and 400mm astrographs.
We designed this focuser for our RH200. Provides great stability and precision during focusing routines. The large diameter of 72mm, offers a big wide aperture to avoid any vignetting and is perfect for our fast f/ telescopes.
| SPECIFICATIONS | |
|---|---|
| FOCUSER CONNECTION - TELESCOPE SIDE | From 400 mm (16'') to 800 mm (32'') |
| FOCUSER CONNECTION - CAMERA SIDE | 2'' OR M72 THREAD |
| FREE APERTURE | 72 MM |
| TRAVEL | 15 MM |
| LOAD CAPACITY | 7 KGS |

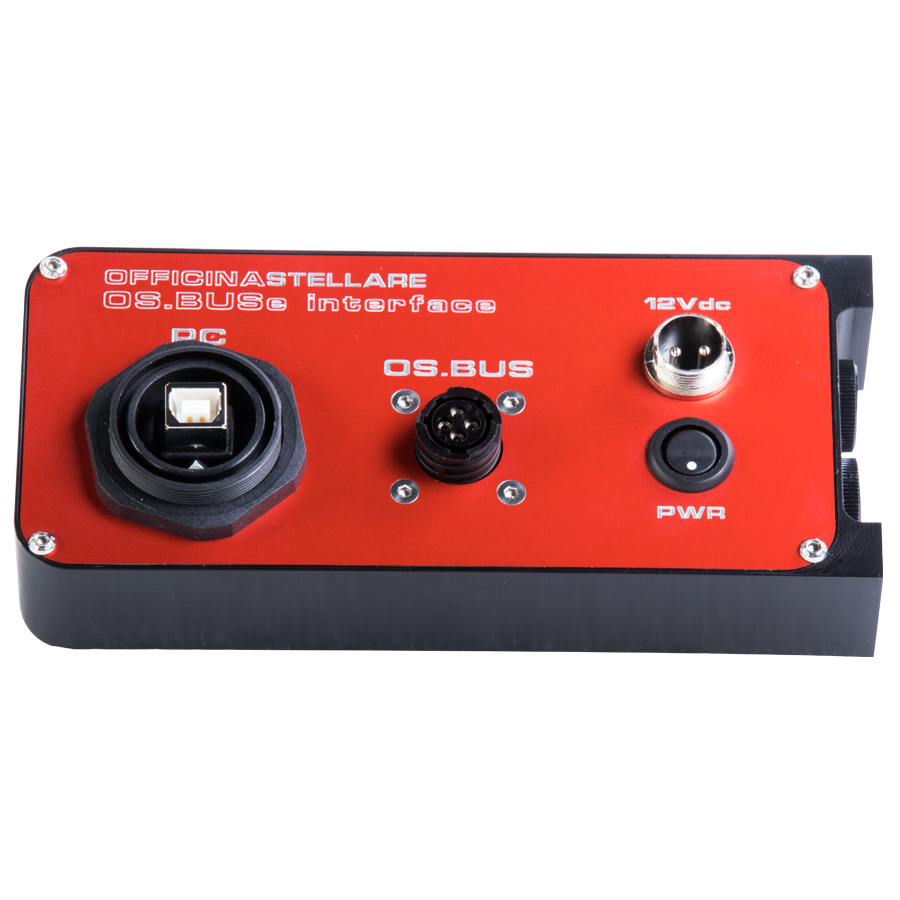

OS Bus
New Advanced Telescope Controller only for Officina Stellare telescopes.
OSBus is the new Advanced Telescope Controller from Officina Stellare. Completely designed and build from us, can remotely control every function on our Truss telescopes. Is provided with our control software. You can manage fans, shutters, focusing, secondary mirror collimation and all functionalities installed into our telescopes.
| SPECIFICATIONS | |
|---|---|
| TELESCOPE CONNECTION | 4 PIN CABLES |
| COMPUTER CONNECTION | USB |
| POWER | 12 V |
RH200 Mark II Remote Tip Tilt
Motors to remotize RH200 MK II tip tilt.
Now you can manage tip tilt on you RH200 MKII directly from your home!
Motors will act on tip tilt mechanism, to let the user a full remote control. Is provided with an hand pad and proprietary software for control. It’s the perfect solution for remote observatories.
| SPECIFICATIONS | |
|---|---|
| NUMBER OF MOTORS | 2 |
| TELESCOPE CONNECTION | 4 PIN CABLE |
| CONNECTION TO PC | USB |
| POWER | 12 V |
Secondary Mirror Tripod
3 in line motors for secondary mirror focus and collimation.
With the SECMOT you can focusing using the secondary mirror, but with the SECTRI – Secondary Mirror Control Tripod – is possible both to focus and collimate using the secondary mirror. Tripod means you have not one, but three hi precision motors to move the secondary mirror. Needs OSBus to be operated.
| SPECIFICATIONS | |
|---|---|
| NUMBER OF MOTORS | 3 |
| COMPATIBILITY | OS TELESCOPES DIAMETER >400MM |
| OPERATED BY | OS BUS |
0.75x RiDK Reducer
A 3 element reducer for RiDK Officina Stellare astrographs.
Designed from our master optician Massimo Riccardi, this 3 lens design reducer will bring your powerful f/7 RiDK down to f/5.25, increasing wide field and keeping the same – tiny – star’s shape.
It’s fully corrected for a wide field of 42mm. A KAF 1680X chip can be used anyway, with a small amount of vignetting and quality decrease on the extreme borders. It’s fully diffraction limited from 450nm to 730nm.
| SPECIFICATIONS | |
|---|---|
| FOCAL REDUCTION | 0.75x |
| NUMBER OF LENSES | 3 |
| CORRECTED FIELD | 42 MM |
Extreme 1.5x Extender for RiFAst and RiLA
A 4 element extender for RiFAst and RiLA Officina Stellare astrographs.
Designed from our master optician Massimo Riccardi, this 4 lens design extender will bring your powerful RiFAst or RiLA telescopes up to f/5.7 and f/7.8, increasing resolution and keeping the same – tiny – star’s shape.
It’s fully corrected for a wide field of 42mm. A KAF 1680X chip can be used anyway, with a small amount of vignetting and quality decrease on the extreme borders. It’s fully diffraction limited from 450nm to 730nm
| SPECIFICATIONS | |
|---|---|
| FOCAL INCREASE | 1.5x |
| NUMBER OF LENSES | 4 |
| CORRECTED FIELD | 42 MM |
Extreme 1.5x Extender for RiFAST300
A 4 element extender for RiFAST300 astrograph only.
Designed from our master optician Massimo Riccardi, this 4 lens design extender will bring your powerful RiFAST300 telescope up to f/5.7, increasing resolution and keeping the same – tiny – star’s shape.
It’s fully corrected for a wide field of 42mm. A KAF 1680X chip can be used anyway, with a small amount of vignetting and quality decrease on the extreme borders. It’s fully diffraction limited from 450nm to 730nm.
| SPECIFICATIONS | |
|---|---|
| FOCAL INCREASE | 1.5x |
| NUMBER OF LENSES | 4 |
| CORRECTED FIELD | 42 MM |
Extreme 0.78x reducer for RiFAst and RiLA
A 3 element reducer for RiFAst and RiLA Officina Stellare astrographs.
Designed from our master optician Massimo Riccardi, this 3 lens design reducer will bring your powerful RiFAst or RiLA telescopes down to f/2.9 and f/4, increasing wide field and keeping the same – tiny – star’s shape.
It’s fully corrected for a wide field of 42mm. A KAF 1680X chip can be used anyway, with a small amount of vignetting and quality decrease on the extreme borders. It’s fully diffraction limited from 450nm to 730nm.
| SPECIFICATIONS | |
|---|---|
| FOCAL REDUCTION | 0.78x |
| NUMBER OF LENSES | 3 |
| CORRECTED FIELD | 42 MM |
RH Veloce Extreme reducer
High quality 0.8x reducer designed for RH Veloce series.
Designed from our master optician Massimo Riccardi, this 3 lens design reducer will make your Veloce telescope even more Veloce, increasing wide field and keeping the same – tiny – star’s shape. It’s fully corrected for a wide field of 42mm.
This reducer can be used only with ATLAS and LEO focusers, due to backfocus need. We will design and build adapters for your imaging train.
A KAF 1680X chip can be used anyway, with a small amount of vignetting and quality decrease on the extreme borders. It’s fully diffraction limited from 450nm to 730nm
| SPECIFICATIONS | |
|---|---|
| FOCAL INCREASE | 0.8x |
| NUMBER OF LENSES | 3 |
| CORRECTED FIELD | 42 MM |
| ON RH200 | F/2.4 (WITH REDUCER) |
| ON RH250 F/5.6 | F/2.4 (WITH REDUCER) |
| ON RH 250 F/5.6 | F/4.4 (WITH REDUCER) |
| ON RH300 | F/2.4 (WITH REDUCER) |
| ON RH350 | F/2.2 (WITH REDUCER) |
OS Bag
Premium quality transport bag for RH200.
Officina Stellare developed this new soft padded bag to transport your telescope in the safest conditions. It’s built with the highest quality materials, to fully protect your precious astrograph from vibrations, humidity and crashes. You can fix the telescope with belts and use a separator to carry other accessories. It’s also suitable for other telescopes, as the iconic Celestron C8 and similar telescopes size. Hand made in Italy.
